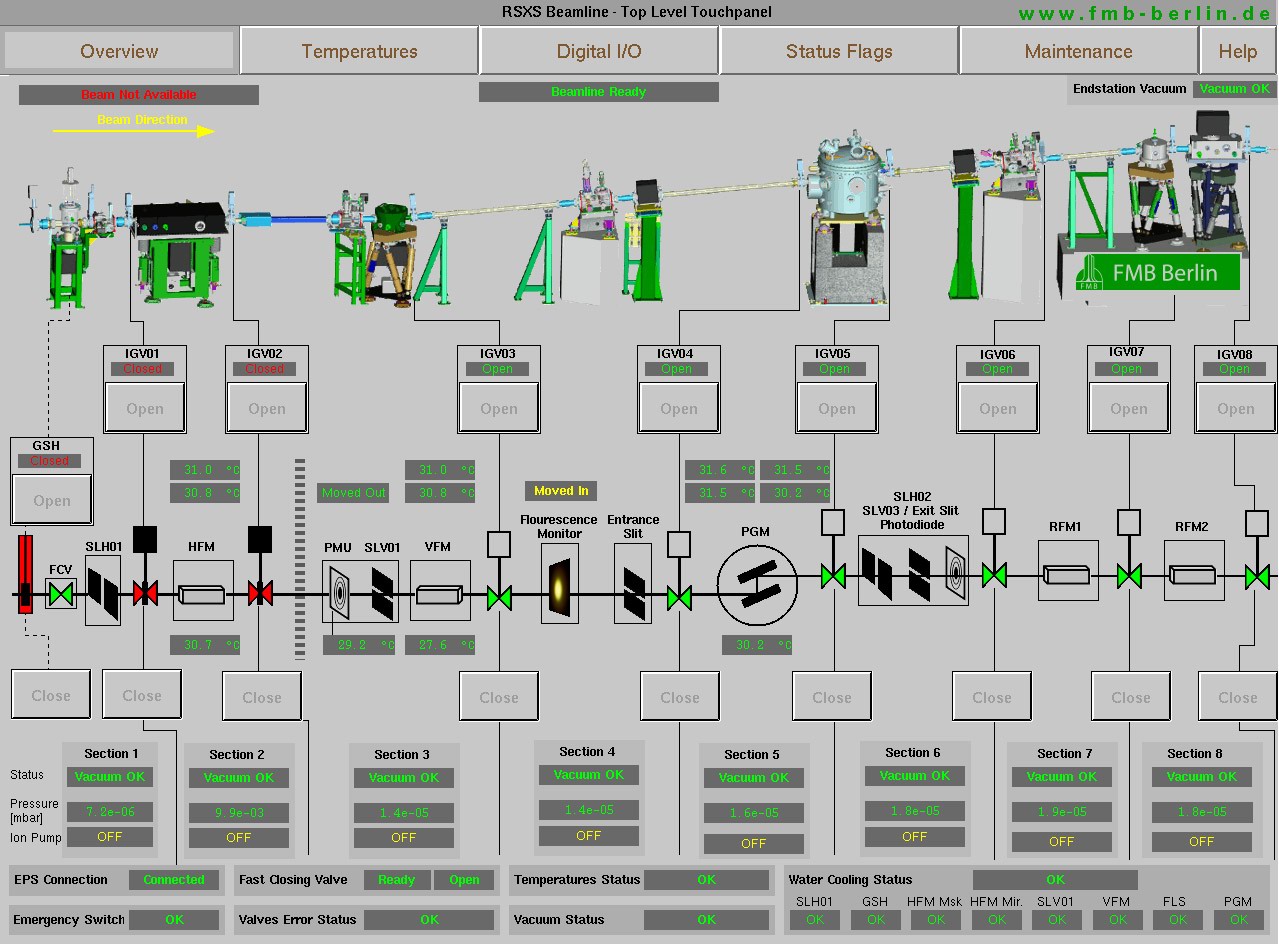

EPS Touch Panel Interface
EPS Touch Panel Interface
BLiCS.EPS - EQUIPMENT PROTECTION SYSTEM

Technical Description:

FMB offers design, development and installation of turn-key equipment protection systems for frontends and beamlines.



Features:

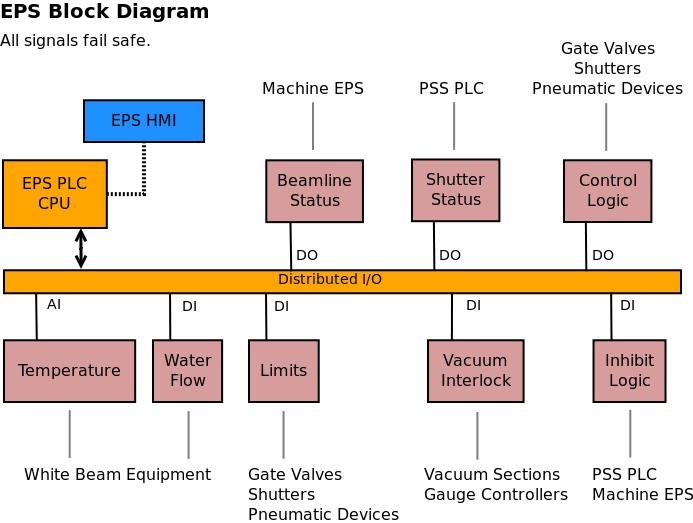

  • Failsafe designed logic implemented on Siemens S7 PLC hardware.
  • Protection based on monitoring vital equipment parameters such as:
    • equipment temperatures
    • cooling water flow rates

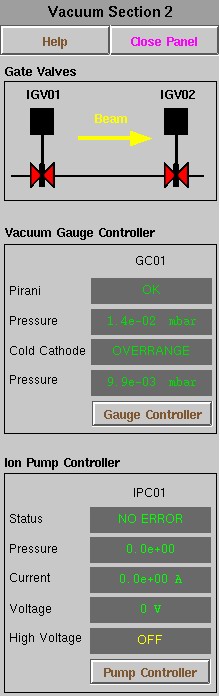

    • vacuum interlocks
      valve and fast valve status
    • shutter status
  • PLC interface to EPICS provides a neat integration into the beamline control software.

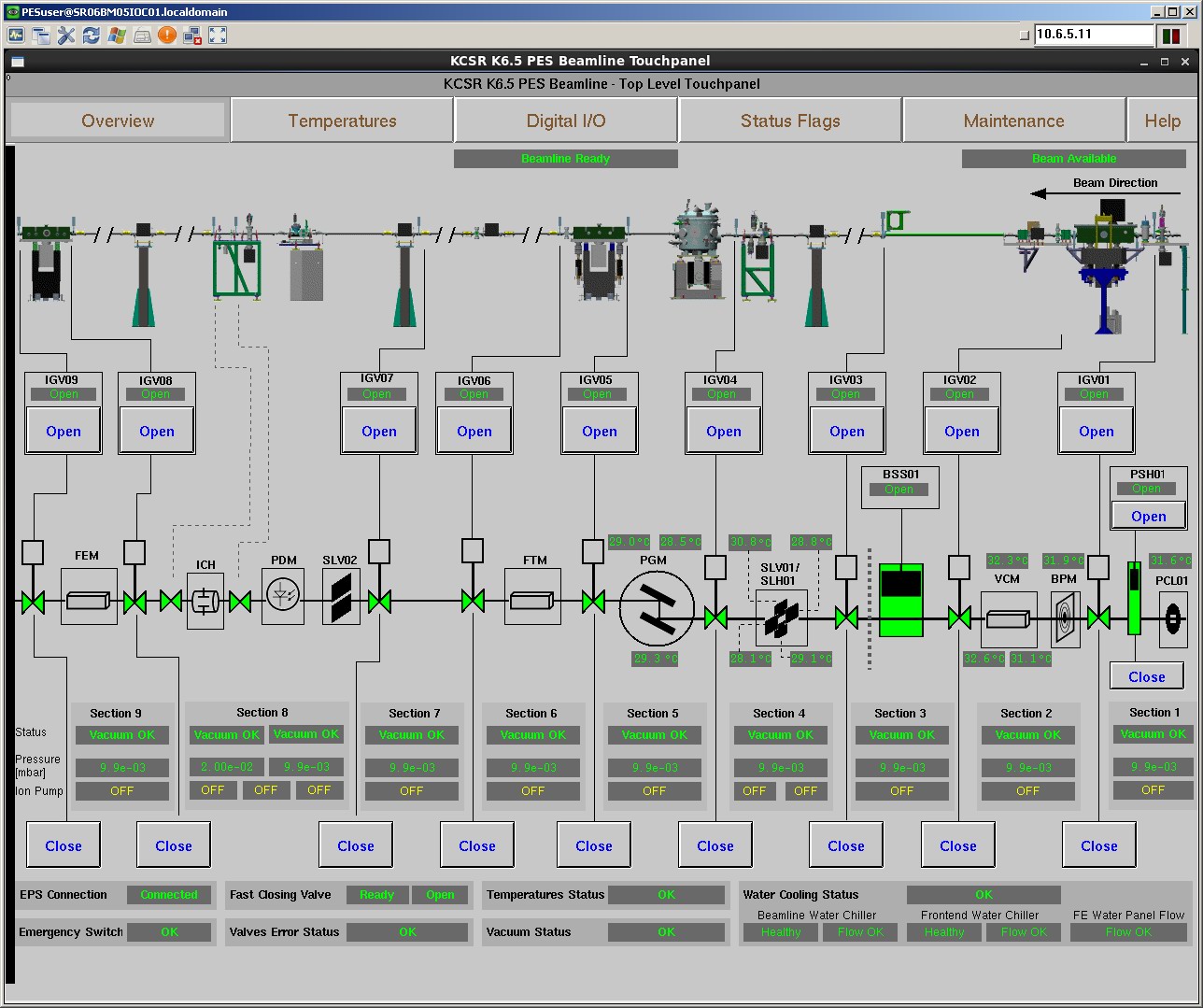

  • Touchpanel monitor provides convenient beamline status display and control.
  • Machine and PSS Interface according to customer requirements.
