ISMI Beamline
Technical Description:
Infrared Spectroscopy and Microscopy (ISMI) Beamline.
Technical Data:
| Radiation source: | Dipole | |
| Wavelength range: | NIR to FIR (1µm .. 10mm or 104cm-1 .. 1 cm-1) | |
| Vacuum range: | UHV up to the diamond window HV/MV downstream the diamond window up to the entrance of the spectrometer | |

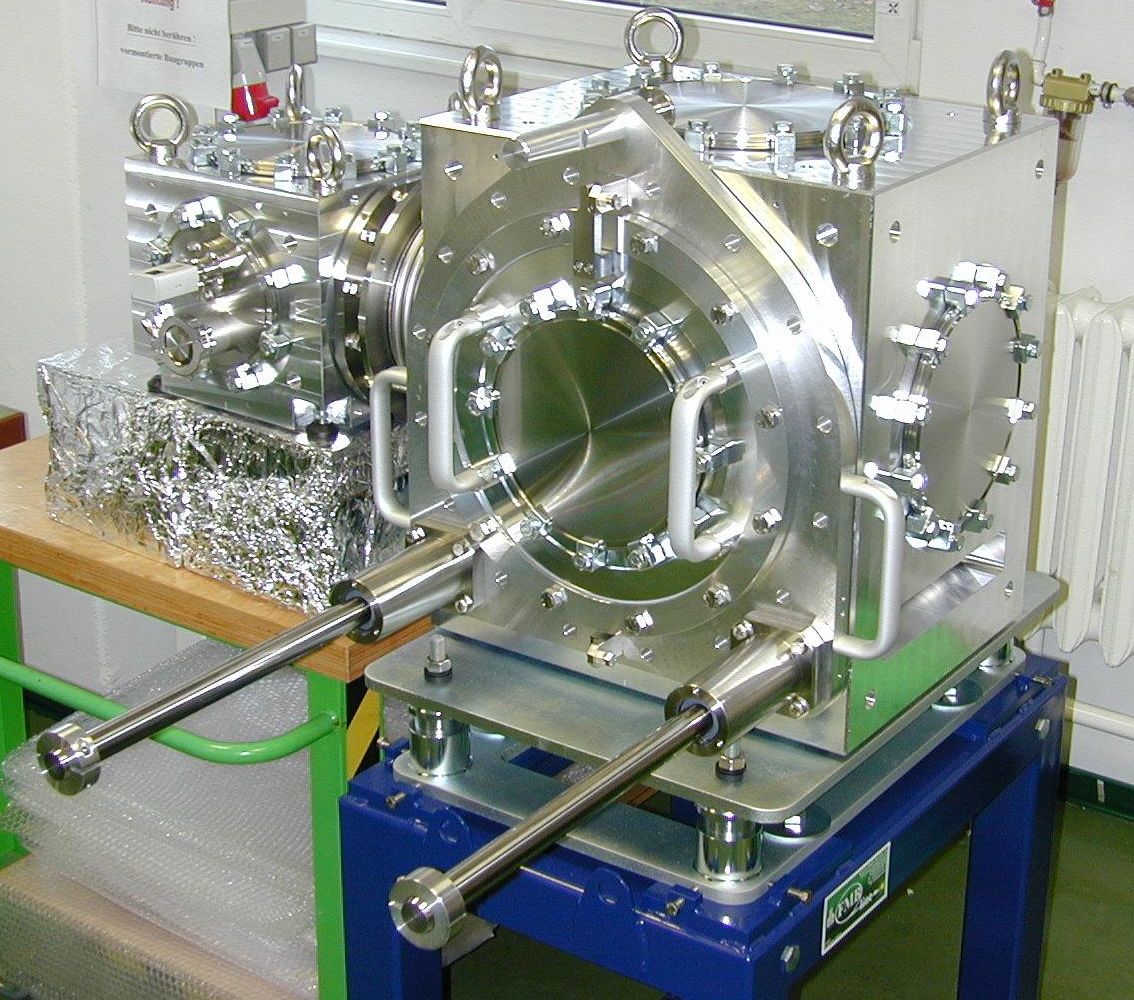

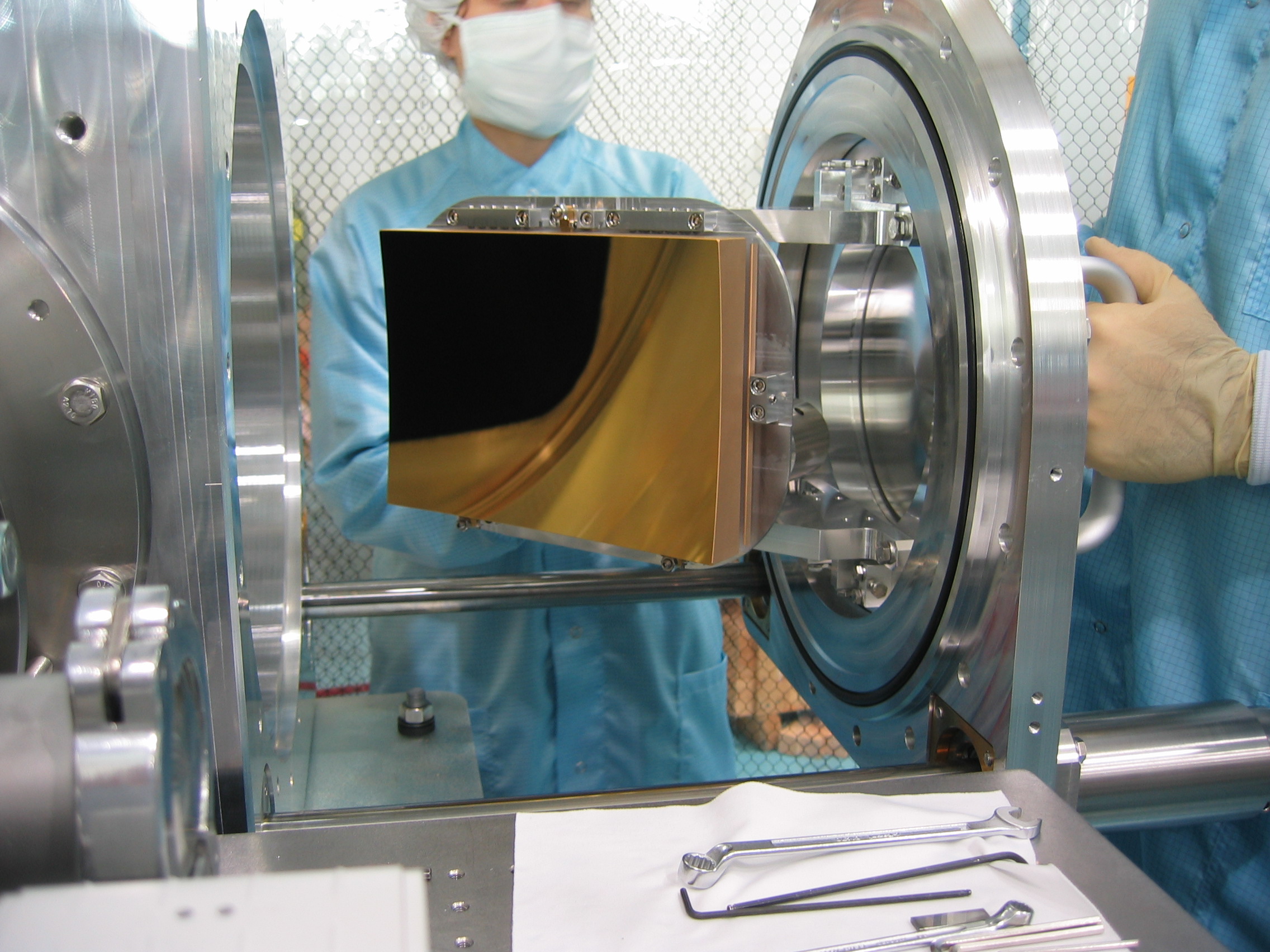

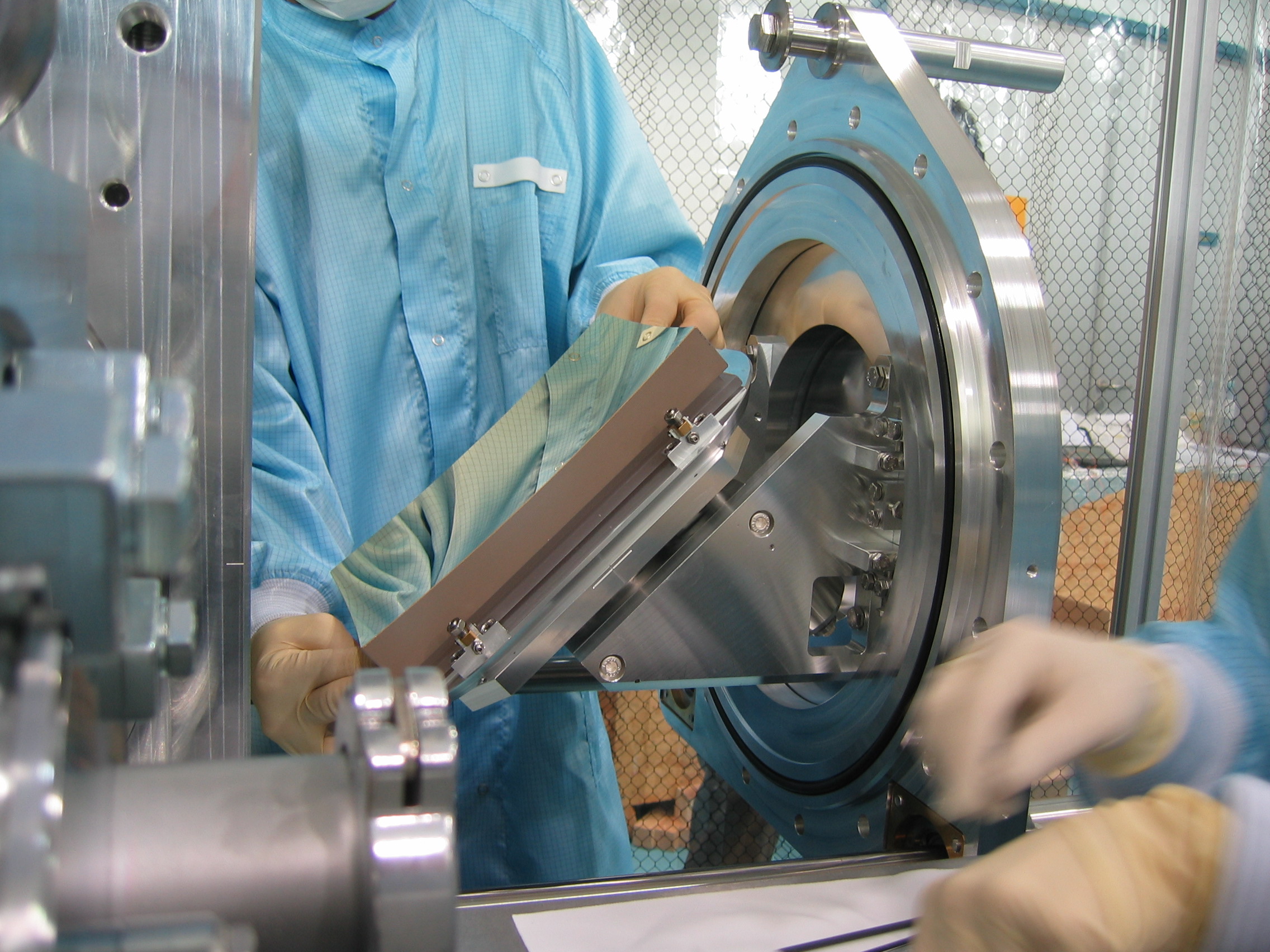

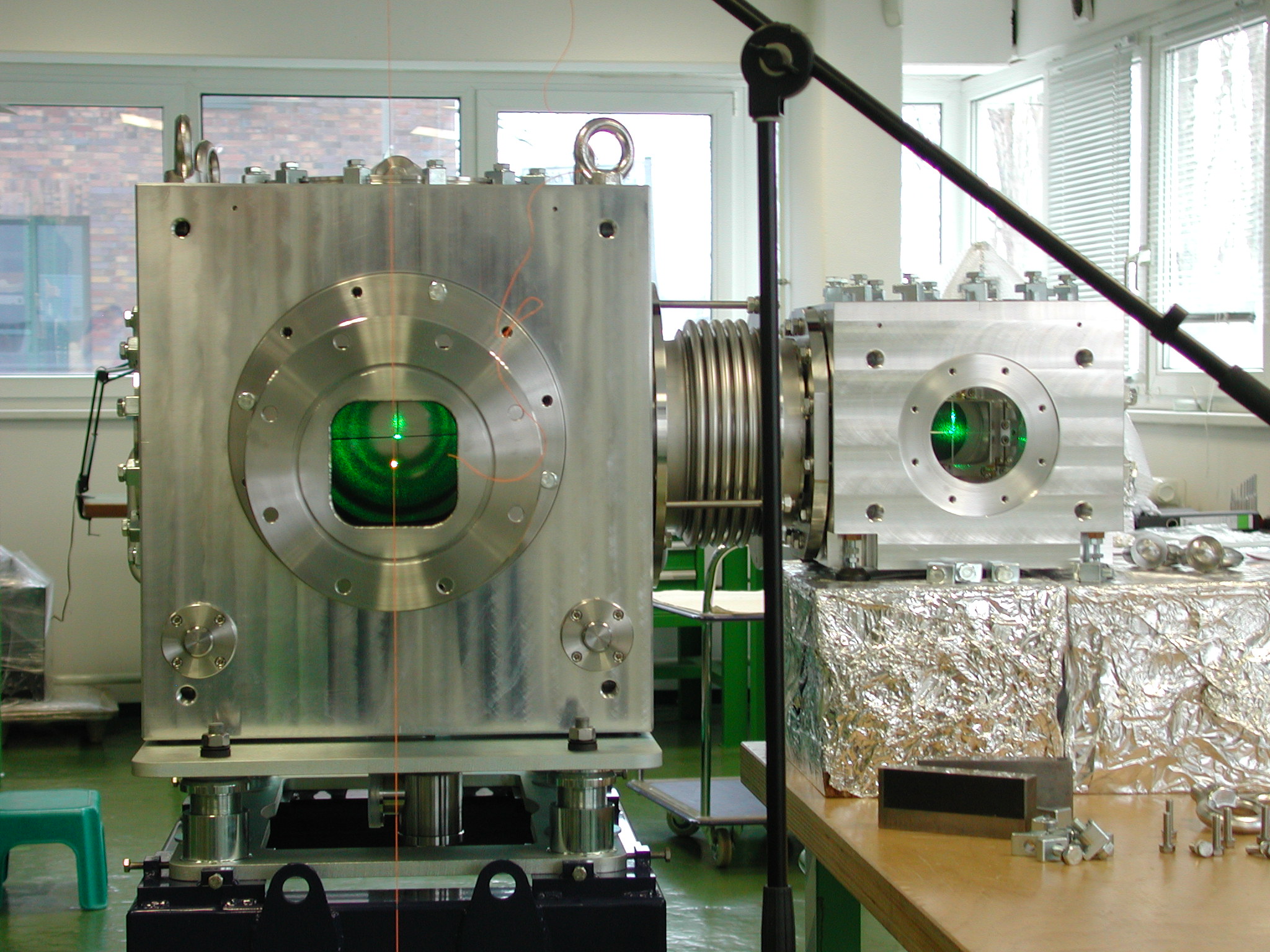

| Mirrors: | Mirror 1: plane, water cooled, GLIDCOP–Ni/Au–coating Mirror 2 and 3: toroidal, fused silica, Au–coating Mirror 4: plane, fused silica, Au–coating Mirror 5: plane, fused silica, Au–coating, switching mirror Mirror 6: ellipsoidal, fused silica, Au–coating Mirror 7: plane, fused silica, Au–coating | |
| Beam diagnostics: | 2 CCD–Cameras viewing M1 and M2 | |

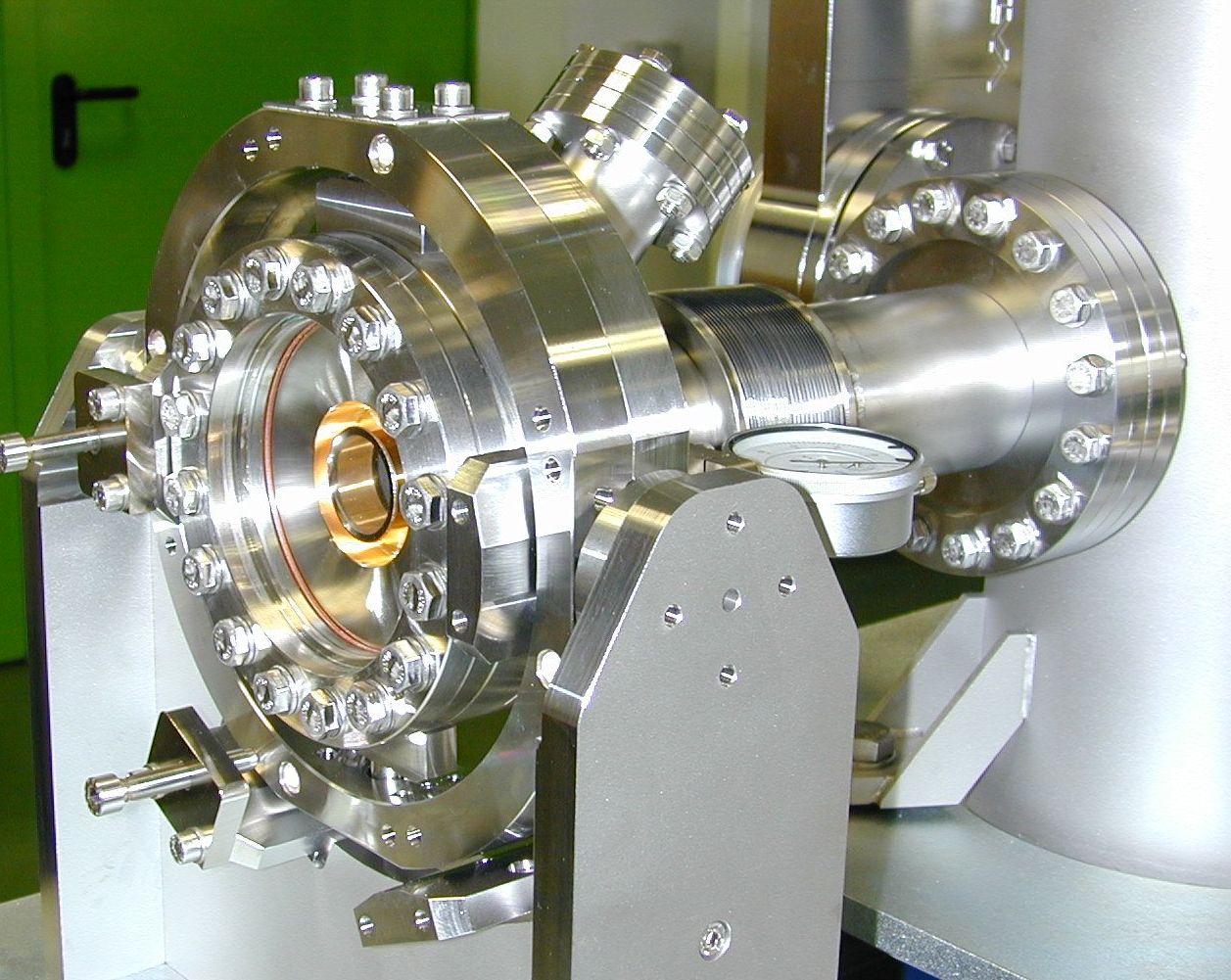

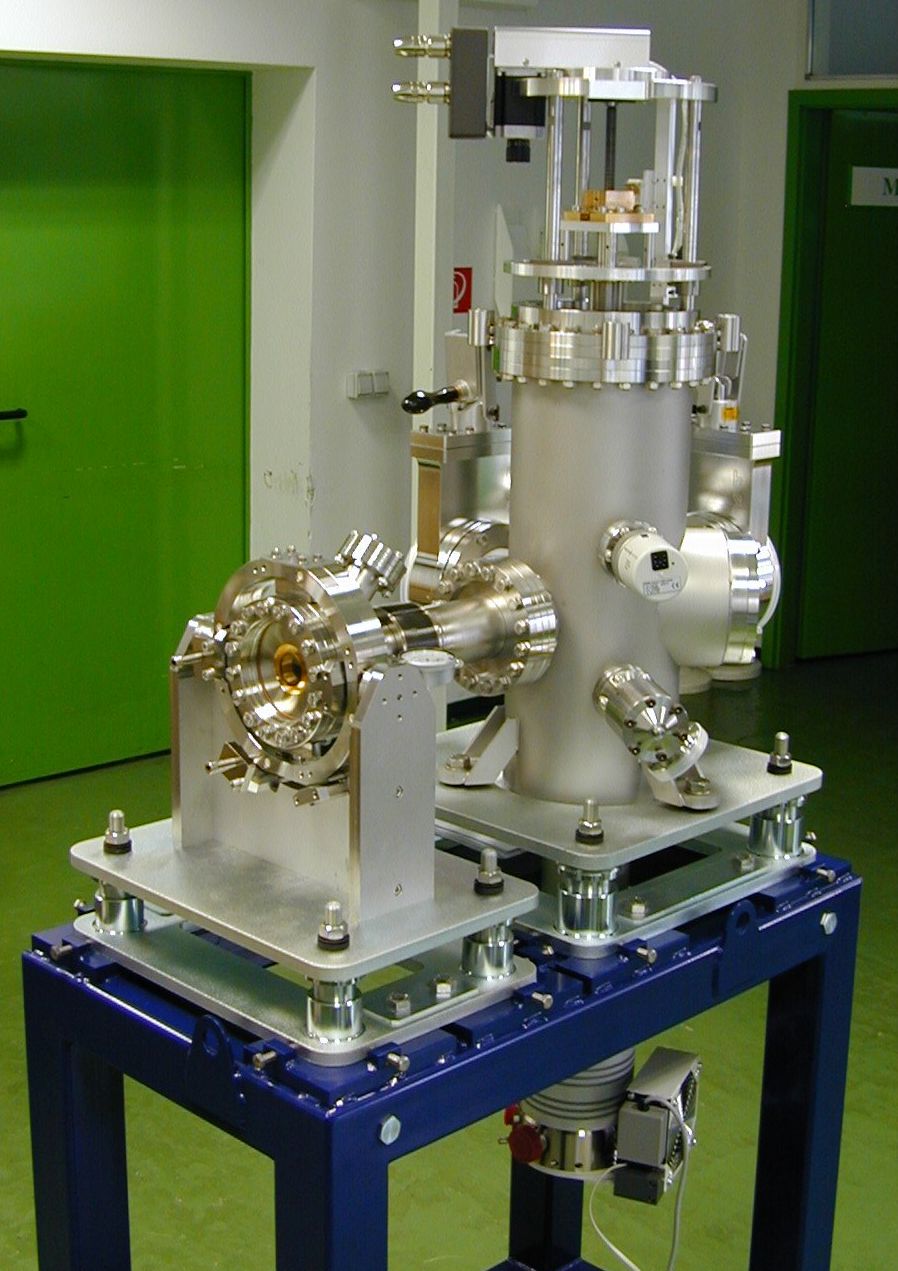

| Diamond window: | Bruker IFS 66V/SCVD diamond pressure window, free inner diametre 30mm, 1°wedged,on an 2–axis angular stage | |
| Spektrometer: | Bruker IFS 66V/S |
Customer & Period:
| Customer: |
Singapore Synchrotron Light Source (SSLS) | |
| Period of Implementation: |
August 2004 to March 2005 |
