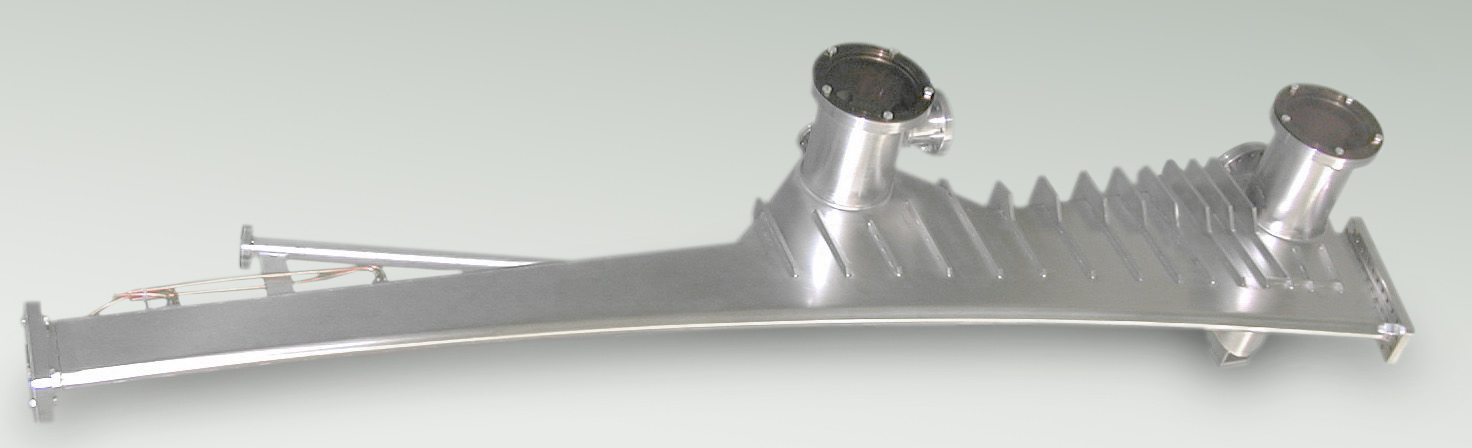

cls dipole vacuum chamber
cls dipole vacuum chamber

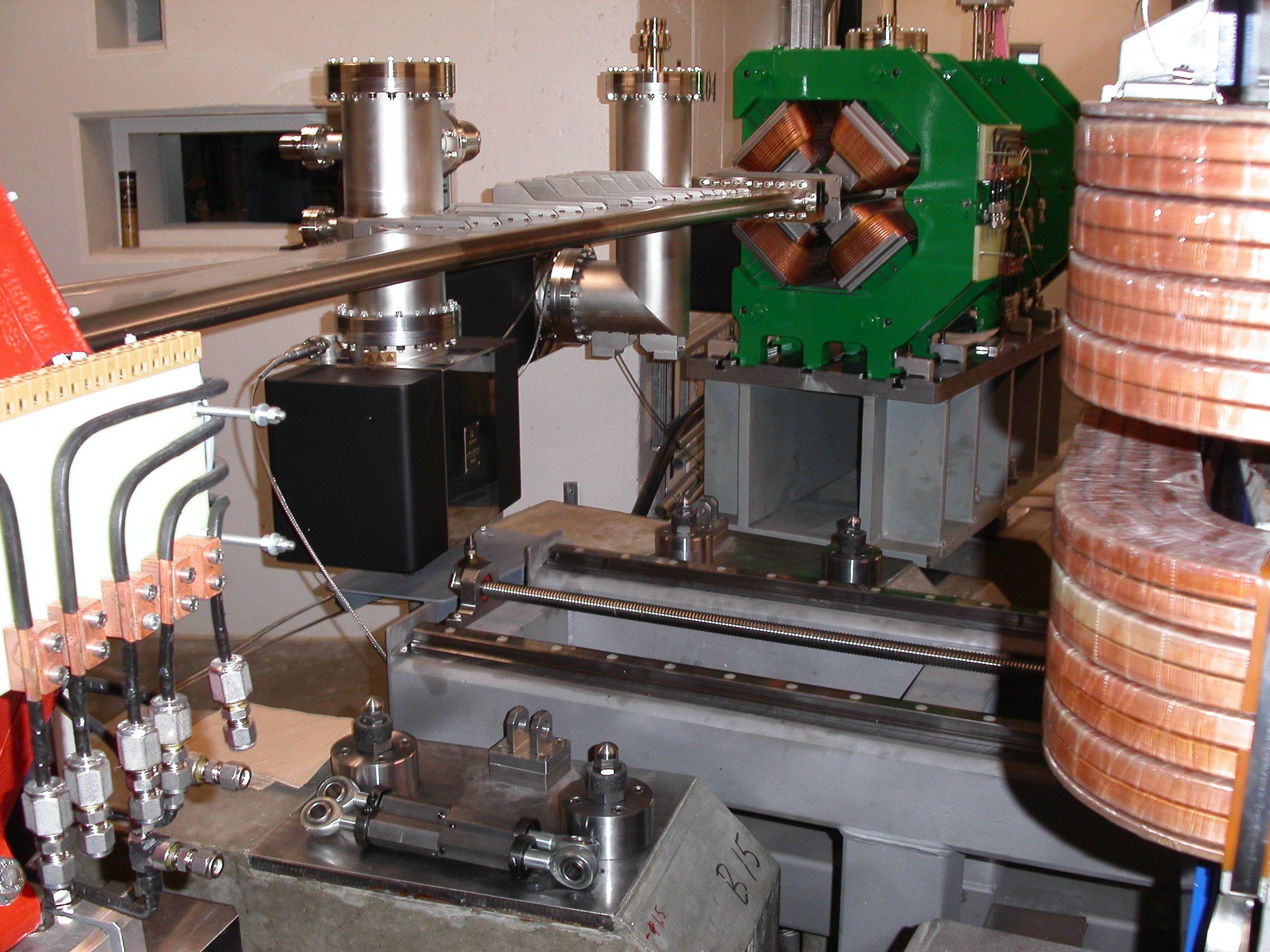

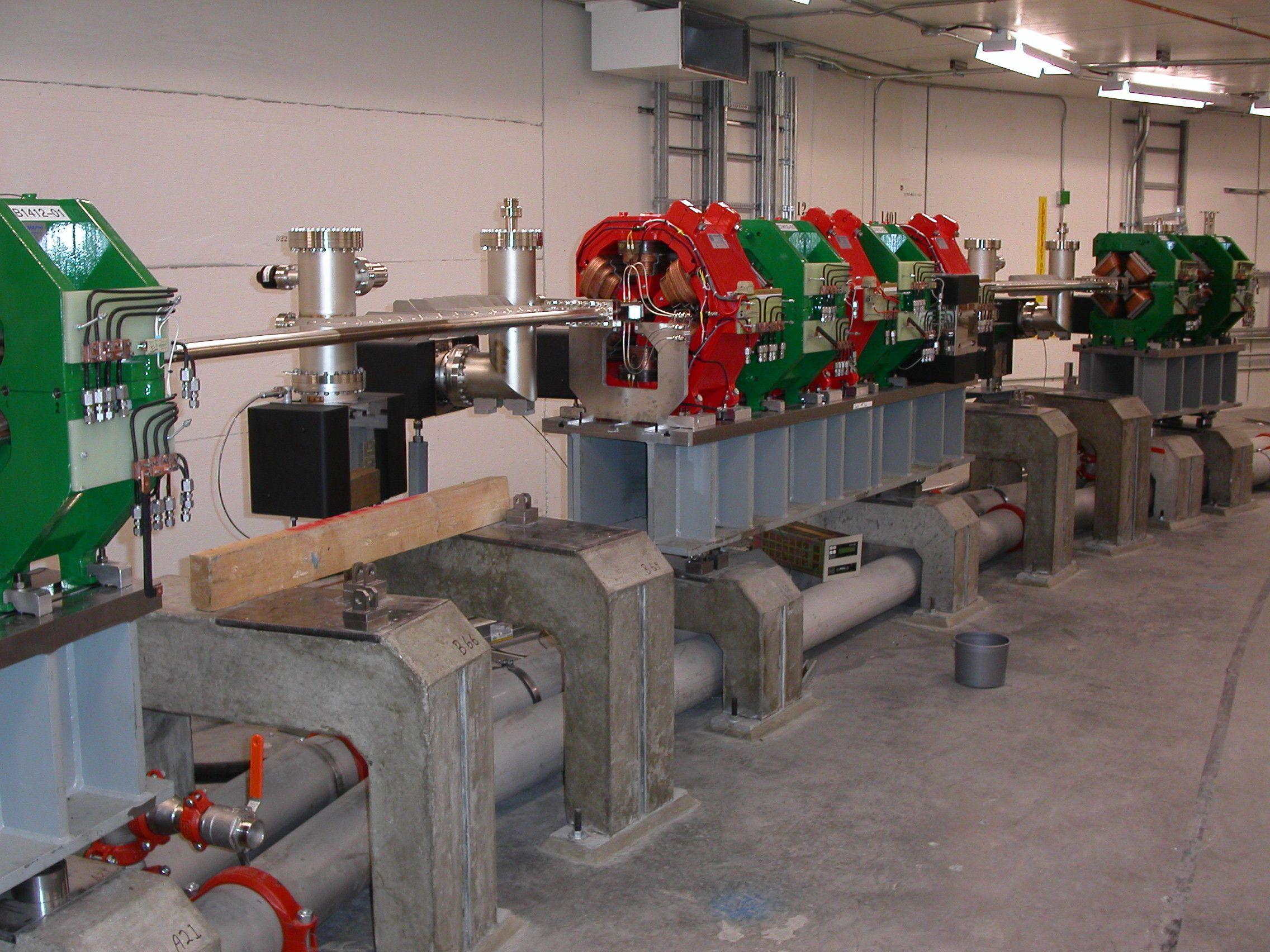

cls dipole vacuum chamber installed in the tunnel without magnets
cls dipole vacuum chamber installed in the tunnel without magnets
cls dipole vacuum chamber installed in the tunnel without magnets
cls dipole vacuum chamber installed in the tunnel without magnets

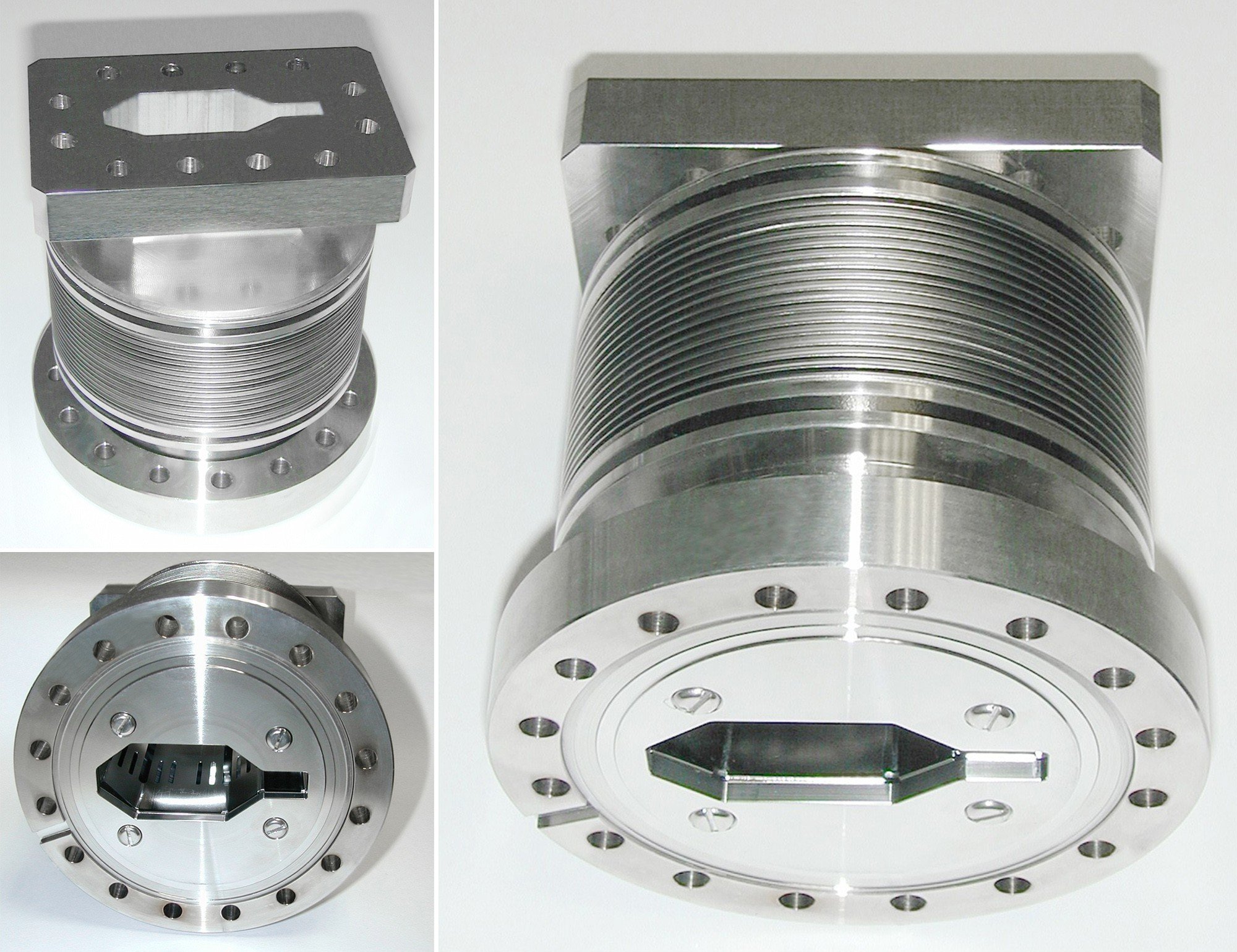

bellow assembly including rf-spring
bellow assembly including rf-spring

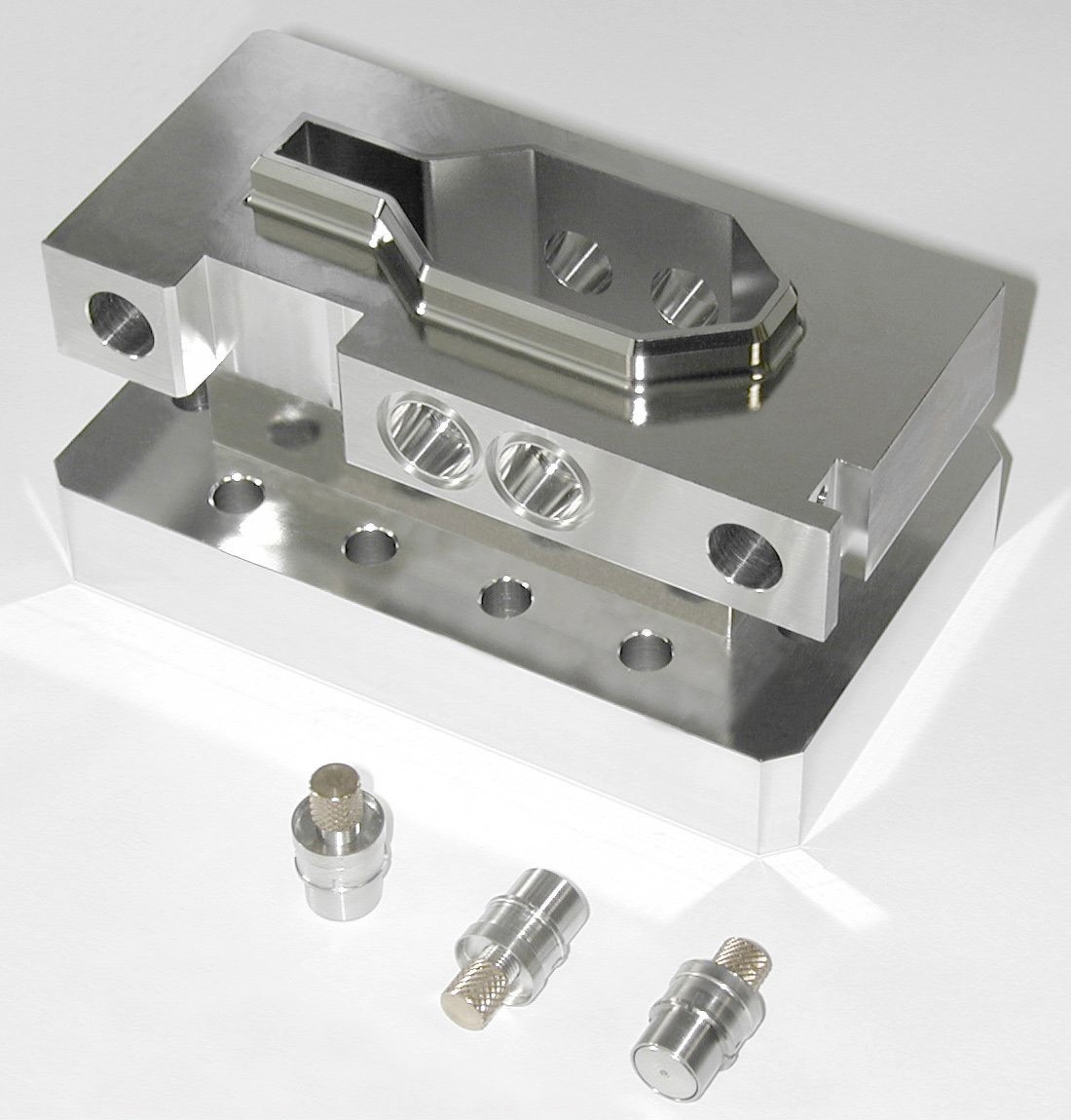

cls bpm flange and feedthroughs
cls bpm flange and feedthroughs
cls dipole vacuum chamber
cls dipole vacuum chamber installed in the tunnel without magnets
cls dipole vacuum chamber installed in the tunnel without magnets
bellow assembly including rf-spring
cls bpm flange and feedthroughs
CLS Vacuum Chambers

Technical Description:

Design and build of 69 ultra high vacuum chambers for the Synchrotron radiation storage ring of the Canadian Light Source project



Technical Data:

Full metal system made of:   Stainless steel 316LN
final pressure:   < 2 x 10-10 mbar
spec. desorption rate:   < 1 x 10-12 mbar . l . s-1 . cm-2
permeability:   < 1,01



Customer & Period:

Customer:   University of Saskatchewan, Saskatoon, Canada
Period of Implementation:
   October 2001 to December 2002
