Frontends for the Australian Synchrotron
Technical Description:

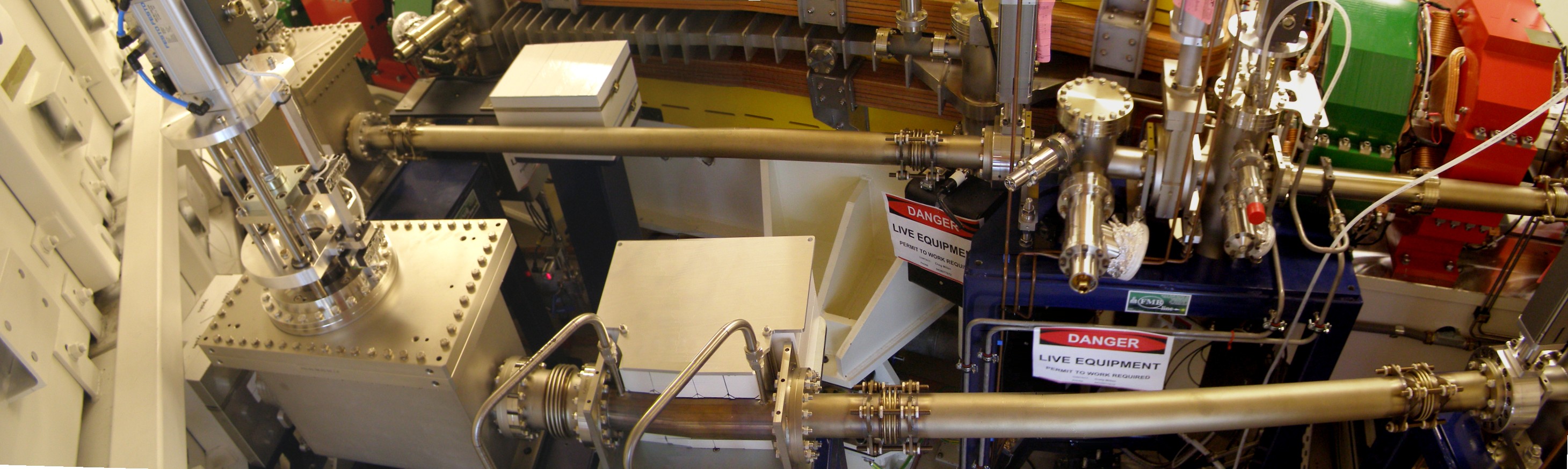

10 Frontends for the Australian Synchrotron

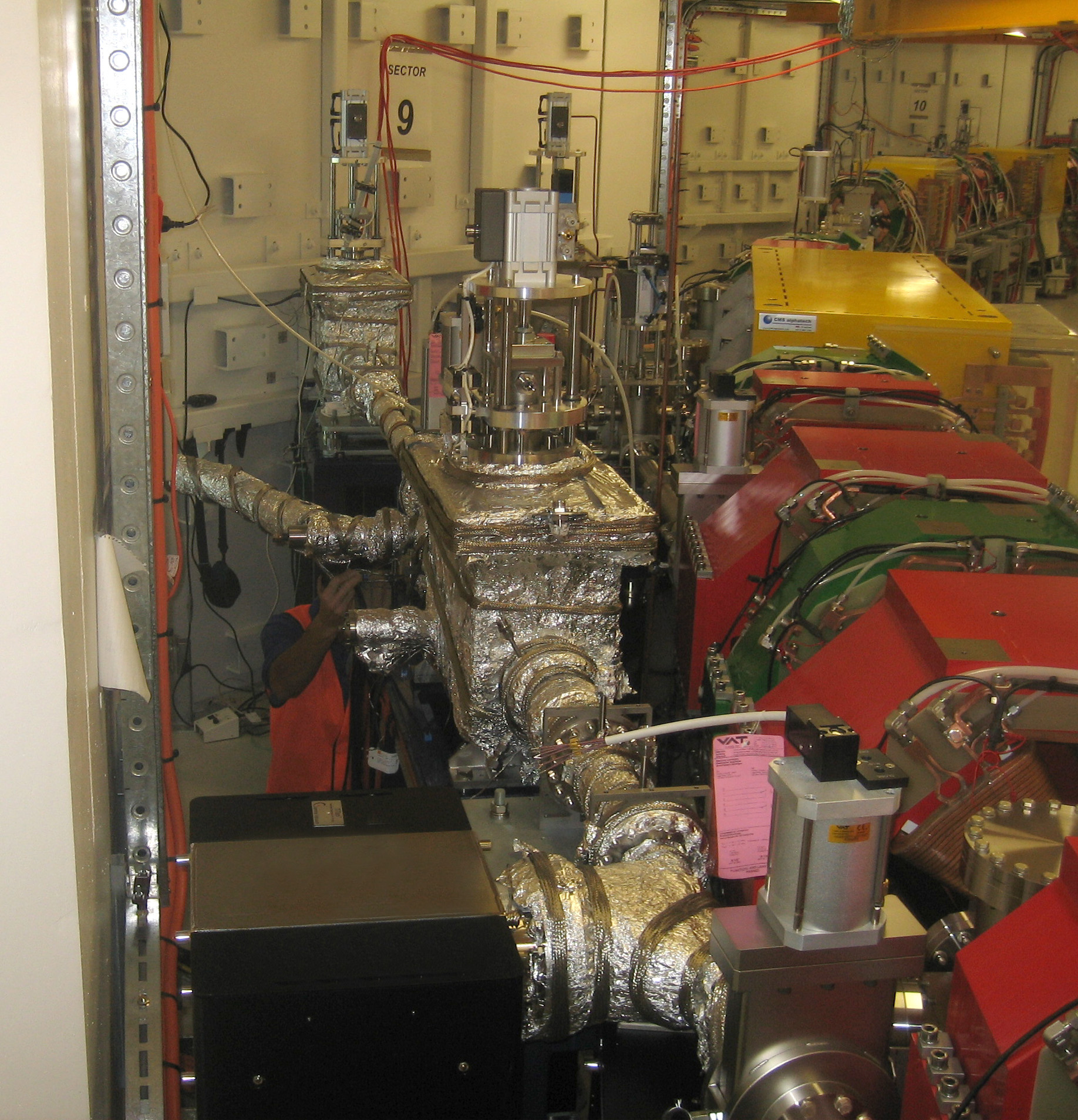

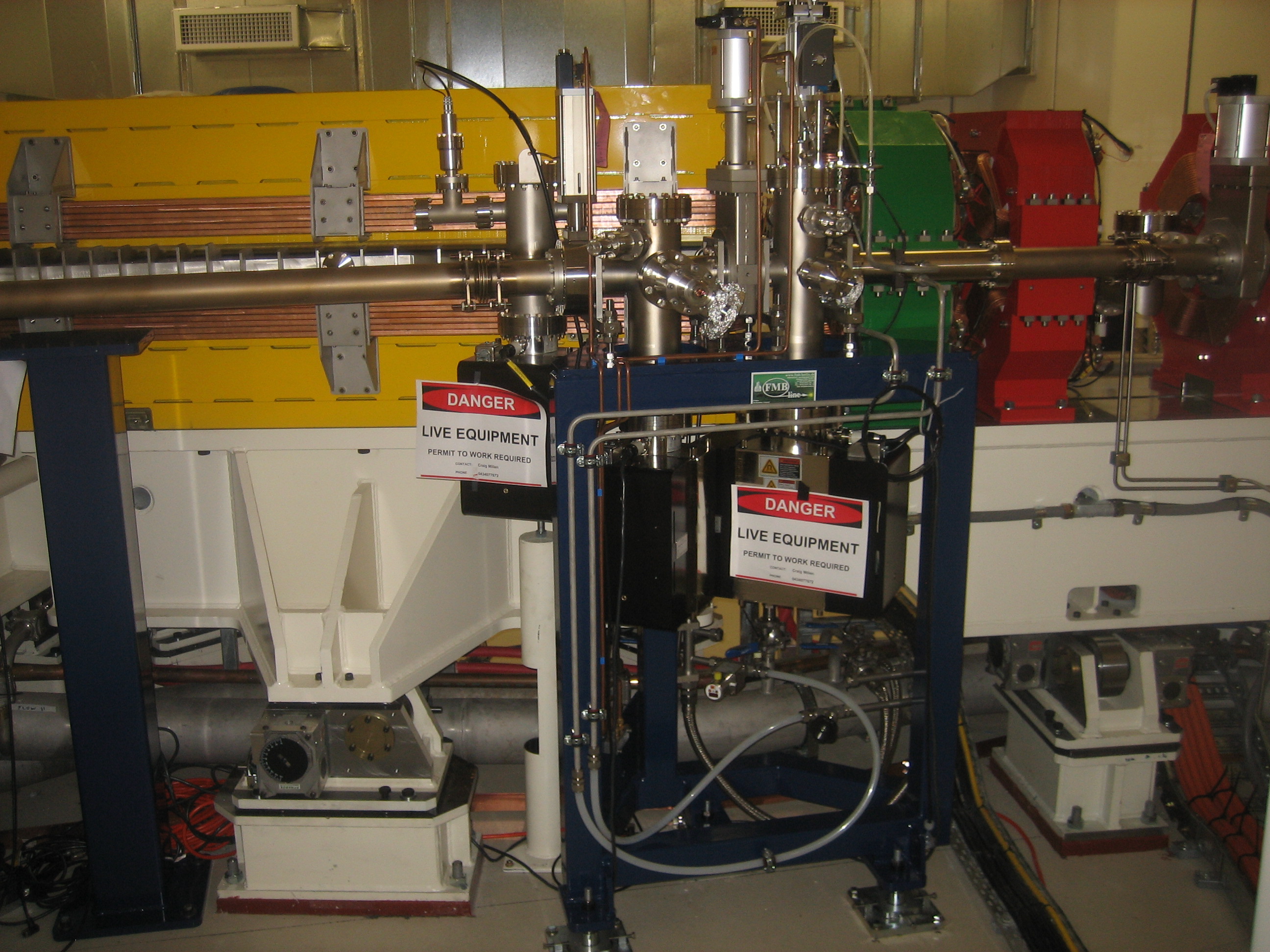

3x Bending Magnet Frontend
1x Optical Diagnostic Frontend
4x Undulator Frontend
2x Wiggler Frontend (1x Permanent–Magnet, 1x Supra–Conducting)
Technical Data:

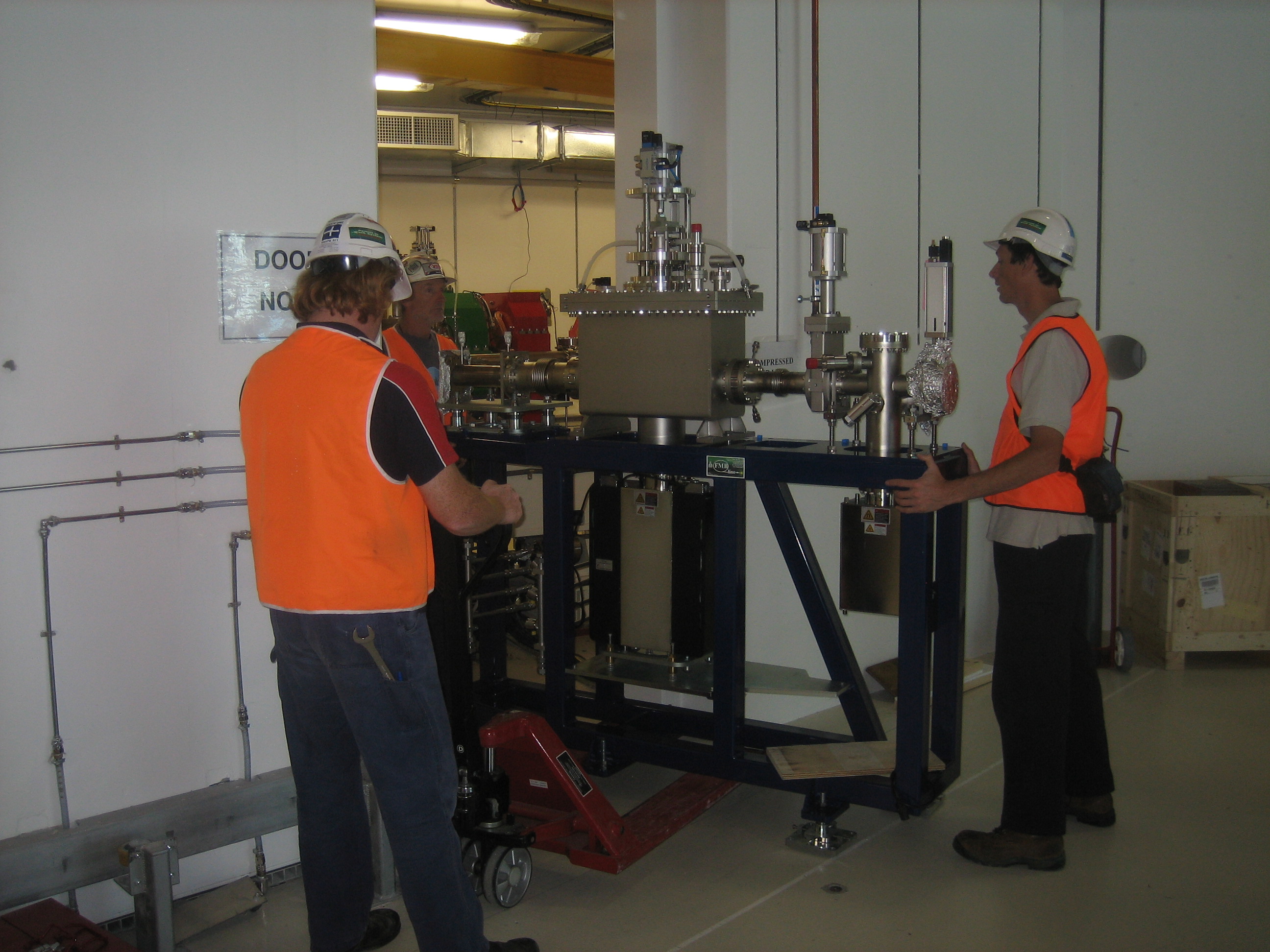

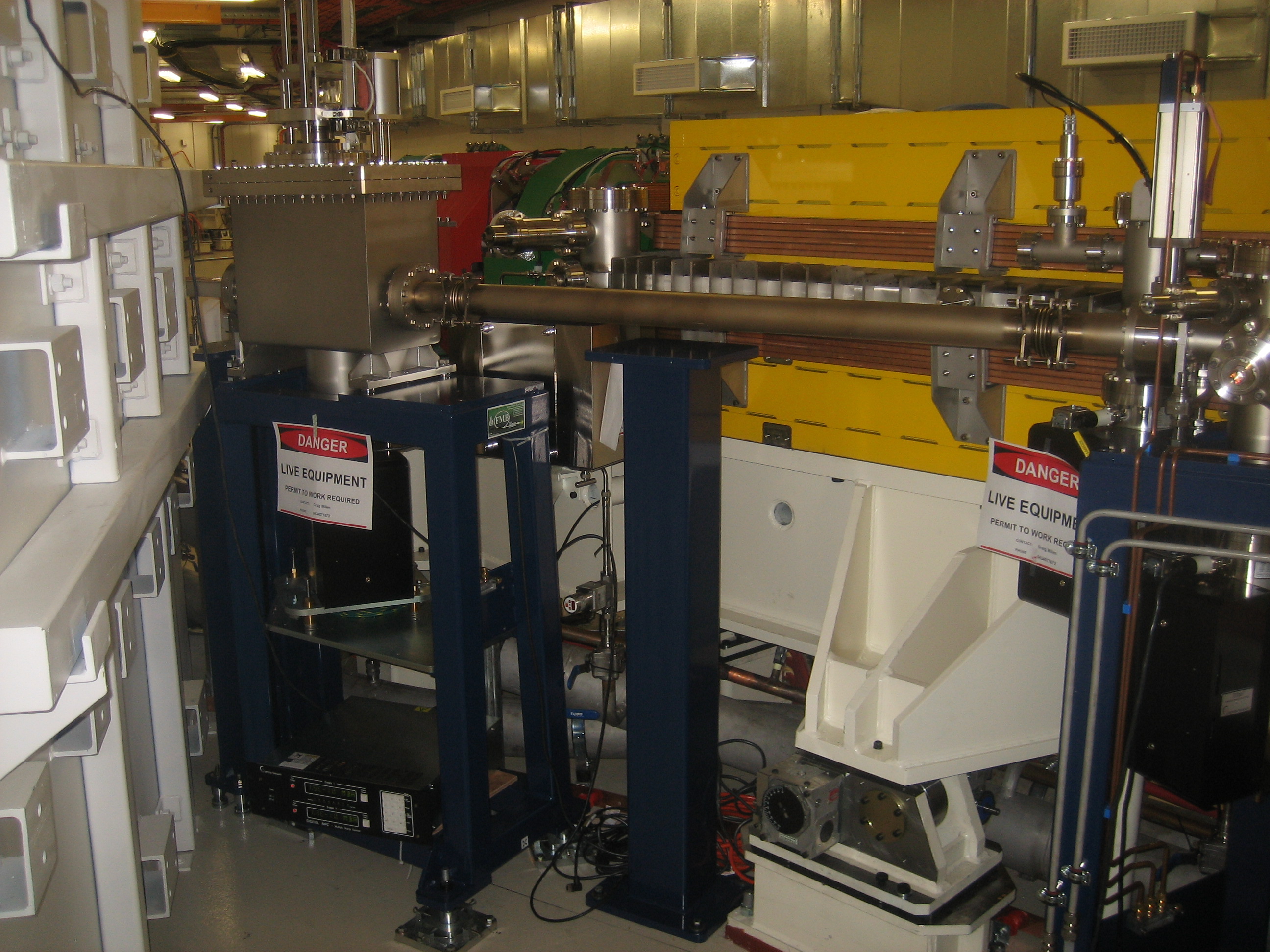

| Scope of supply: | Photon shutters Photon collimators (masks) Vacuum vessels Bellows Bremsstrahlung shutters Bremsstrahlung collimators (masks) Fast vacuum shutter including controller, sensor and cabling gate valves (all metal/VITON) Pressure gauging including controllers Low conductivity water (LCW) distribution and gauging Compressed air distribution Support stands and tapped floor anchors bake-out equipment Installation supervision on site |
|
| Radiation source: | Dipol, Undulator, Permanent-Magnet- und Supra-Conducting-Wiggler | |
| Power Range: | Dipole: 30W/mrad Undulator: up to 6kW Wiggler: up to 20kW |
|
| Vacuum range: | UHV | |

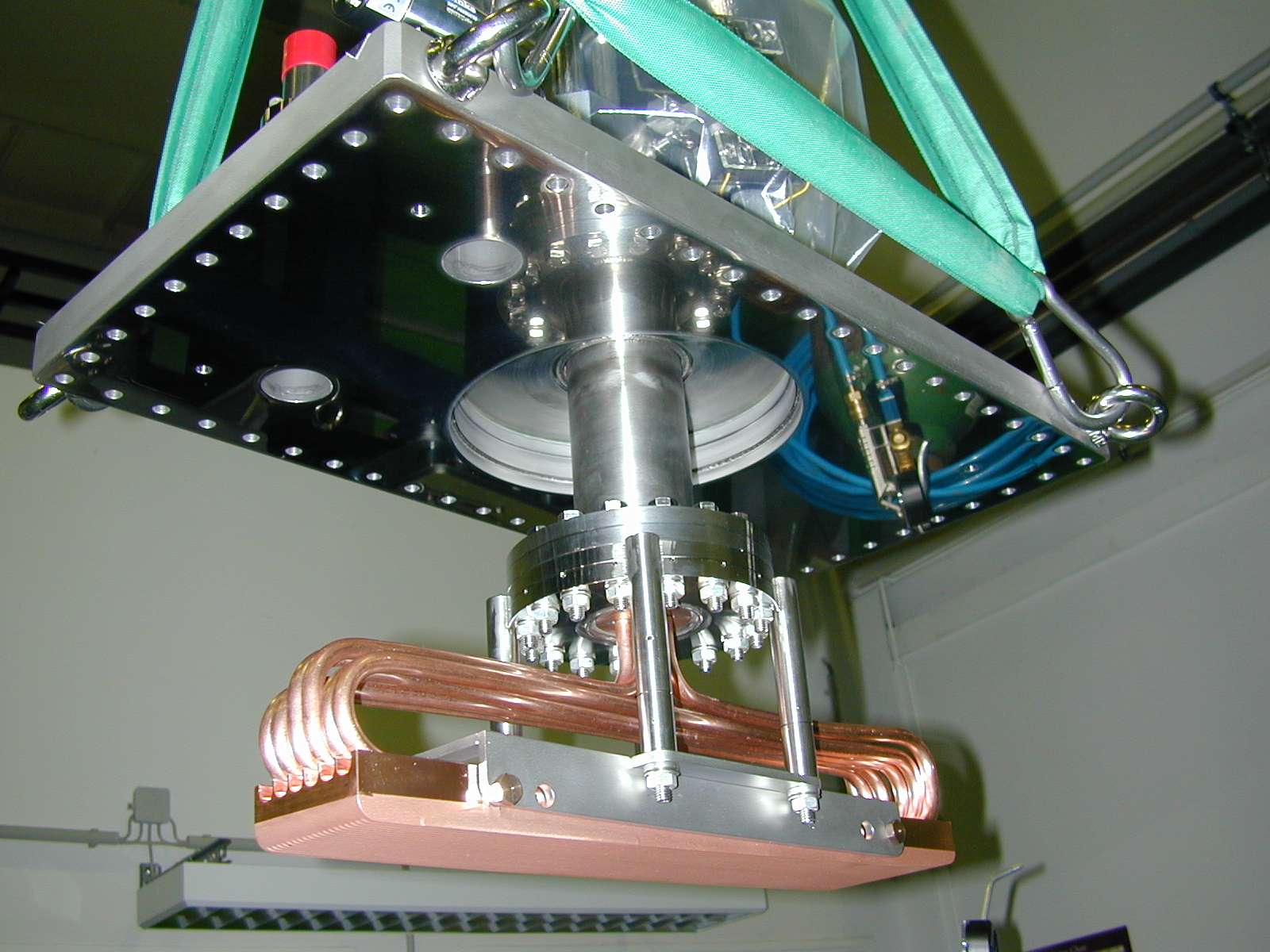

| Special Components | Photon Collimators and Photon Shutters for high beam power up to 20kW |
Customer & Period:
| Customer: |
Major Projects Victoria (MPV) / Australian Synchrotron Project (ASP) | |
| Period of Implementation: |
April 2005 to March 2006 |
